01
Efficiency
Modular, compact design improves space efficiency. High interrupting performance and low power loss support stable power management.

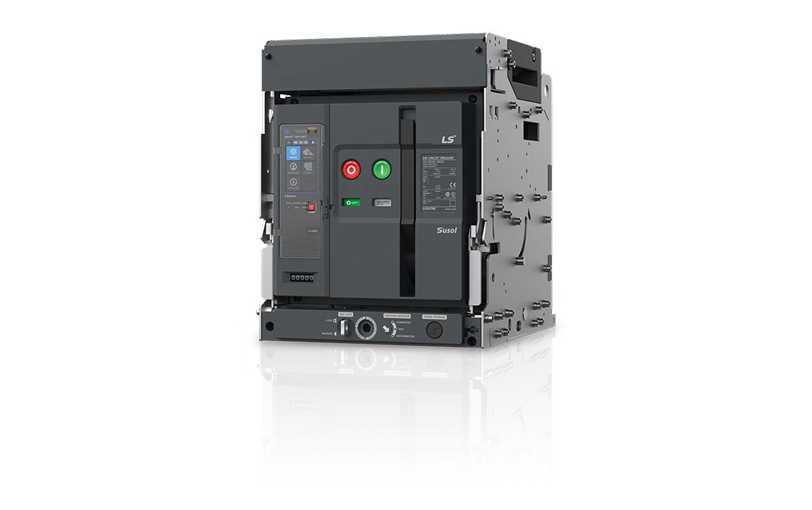

Susol UL ACB
The premium Susol UL Air Circuit Breaker (ACB) is designed to meet customer requirements with high interrupting capacity, a lineup up to 6000 A, and a frame structure optimized for switchboard design. The Susol UL ACB is equipped with advanced trip relays that support measurement, diagnostics, analysis, and communication. When used to complete a power monitoring or protection coordination system, the products provide an integrated solution for power distribution applications.
- Rated Current
- 400 – 6000 A
- Rated Short Circuit Current (Sym.)
- Up to 130 kA (at 508 V AC, 6000 A) Up to 85 kA (at 847 V AC, 4000 A)
- Standard
- UL 489 (C-frame) UL 1066 (D, E, G-frame)
Key Features
02
Convenience
Replaceable trip units and plugs simplify maintenance. Multiple connection options and draw-out construction provide design flexibility. Field-installable accessories improve installation efficiency.
03
Reliability
Supports ratings up to 130 kA and 847 V AC. Electronic trip technology enables precise protection and metering. Tested for use in demanding industrial environments to support reliable application.
04
Smart Features
Supports Modbus, BLE, NFC, and USB connectivity. Integrates protection, metering, diagnostics, and communication functions.
Lineup
Rated Operational Voltage | Rated Current(In) | Rated Short Circuit Current | Applicable Standard | |
|---|---|---|---|---|
 C Frame | Up to 800 Vac | 400-1200 A | Up to 65 kA | UL 489 |
 D Frame | Up to 635 Vac | 400-1600 A | Up to 85 kA | UL 1066 |
 E Frame | Up to 847 Vac | 400-4000 A | Up to 100 kA | UL 1066 |
 G Frame | Up to 635 Vac | 1600-6000 A | Up to 130 kA | UL 1066 |
Downloads
7월 20일_영문 - C150B2
- 7월_20일_EN_C150B2-01-202607.jpg (52.36KB)
[Susol UL ACB] Catalog
- [Susol_UL_ACB]_EN_C06072-26-202603.pdf (56.13MB)
- [Susol_UL_ACB]_EN_C06072-26-202603.pdf (56.13MB)
[Susol UL ACB] for Nuclear power plant
- [Susol_UL_ACB]_원전용_EN_C060S2-01-202602.pdf (56.13MB)
[ACB CKD] Replacement Manual
- 2_Replacement manual_Coil.pdf (1.45MB)
- [ACB]_Replacement Manual_Accessory_251202_Eng.pdf (1.00KB)
- 3_Replacement manual_Motor.pdf (1.53MB)
- [ACB]_Replacement manual_STU_251202.pdf (1.00KB)
- [ACB]_Replacement Manual_Trapped Keylock_260608.pdf (1.00KB)
[ACB] OCR tester
- [ACB] OCR tester_Manual_EN_201909.pdf (9.06MB)
