01
Efficiency
Compact and simplified construction improves space efficiency and supports flexible switchgear design. Fixed and draw-out configurations are available to meet various application requirements.

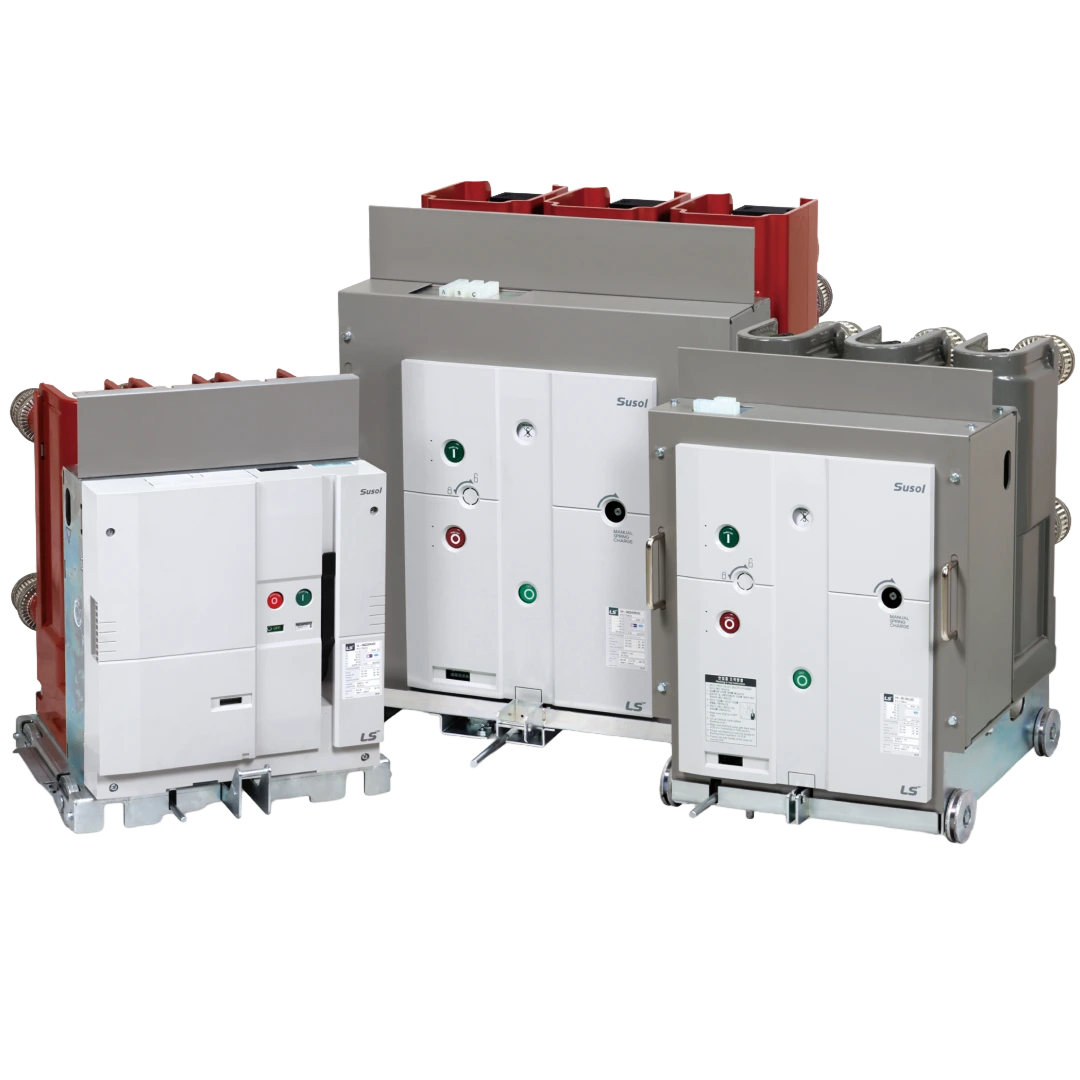

Susol UL VCB
The premium Susol UL Vacuum Circuit Breaker (VCB) is designed with a compact footprint, simplified structure, and a highly reliable main circuit. With ratings up to 38 kV, 4000 A, and 50 kA, along with options such as Dual Phases, Auto-Con, and Remote Racking, the heavy-duty circuit breaker is suitable for medium-voltage power distribution applications in the North American market.
- Rated Voltage
- 4.76 – 38 kV
- Rated Current
- 1200 – 4000 A
- Interrupting Current
- Up to 50 kA
Key Features
02
Convenience
Draw-out operation can be performed with the door closed, making operation and inspection easier. Remote operation further supports convenient system control.
03
Reliability
With ratings up to 38 kV, 3000 A, and 40 kA, the Susol UL VCB supports reliable medium-voltage system protection. Vacuum interrupter technology provides stable interruption performance.
04
Safety
Metal isolation enhances safety for operators and equipment. Protection options, such as MOC, TOC, key lock, and UVT, are available to support safe operation.
Lineup
|
|||
|---|---|---|---|
| UVL | UVM | UVH | |
| Model | UVL-05 / 15 | UVM-05 / 15 / 27 | UVH-05 / 15 / 27 / 38 |
| Rated Voltage | 4.76 / 15 kV | 4.76 / 15 / 27 kV | 4.76 / 15 / 27 / 38 kV |
| Rated Current | 1200 / 2000 A | 1200 / 2000 A | 1200~4000 A |
| Interrupting Current | 25 / 31.5 kA | 25 / 31.5 kA | 25 / 31.5 / 40 / 50 kA |
| Main Type | Fixed / Draw-out | Fixed / Draw-out | Fixed / Draw-out |
Downloads
UL VCB
- UL_VCB_EN_C050E2-12-202512.pdf (94.76MB)
[Susol UL VCB]_User_Manual_UVGT-05/15/38kV
- [Susol UL VCB]_User Manual_UVGT-38kV_EN.pdf (1.00KB)
[Susol UL VCB]_User_Manual_UVH 27/38kV
- [Susol UL VCB] UVH_27,38kV_Manual_EN.pdf (1.00KB)
[Susol UL VCB] UVH_26.4, 28.4kV_Manual_ Hydro Quebec, Canada
- [Susol UL VCB] UVH_26.4, 28.4kV_Manual_ Hydro Quebec, Canada_FR.pdf (1.00KB)
[Susol UL VCB]_User_Manual_UCGT-05/15/27/38kV
- [Susol UL VCB] UCGT-05,15,27,38kV_Manual_EN.pdf (1.00KB)
