01
Proven Reliability
- Delivered and successfully operated across critical industries, including data centers, oil and gas, petrochemical, steel, and semiconductor facilities, demonstrating a strong track record of reliable performance.
Diagnosis System
LS ELECTRIC Diagnosis is a condition monitoring and diagnostic solution for power equipment. The solution monitors, diagnoses, and predicts potential failures caused by major component defects, natural aging, or unexpected system conditions during operation. User-friendly software tools help improve power supply reliability and support stable equipment operation.
Predictive Asset Diagnostics:
Enhancing Reliability Through Intelligent Monitoring
The Diagnosis solution detects abnormalities and predicts potential failures through real-time equipment monitoring. It helps improve the reliability of power assets and support stable operation.
Key Features
02
Advanced Event Analysis with Machine Learning
- Utilizes machine learning-based analytics for advanced event and fault analysis, providing deeper insights into equipment status and changes in operating performance or power quality.
03
Reduced Downtime
- Minimizes plant downtime through real-time monitoring and high-speed Gigabit Ethernet communication, enabling rapid detection and response to abnormal conditions.
04
Convenient Maintenance and Inspection
- Supports systematic and precise maintenance through intuitive CMD interfaces for individual equipment and a CMS platform capable of monitoring assets across up to 200 sites.
System Configuration
Transmission-Level Diagnosis System
(HV CMD)
Provides condition monitoring and diagnostic capabilities for high-voltage power equipment, including HV GIS and power transformers, to support reliable operation of transmission assets.
Distribution-Level Diagnosis System
(MV/LV CMD)
Provides condition monitoring and diagnostics for medium- and low-voltage equipment, including cast resin transformers, switchboards, and distribution systems.

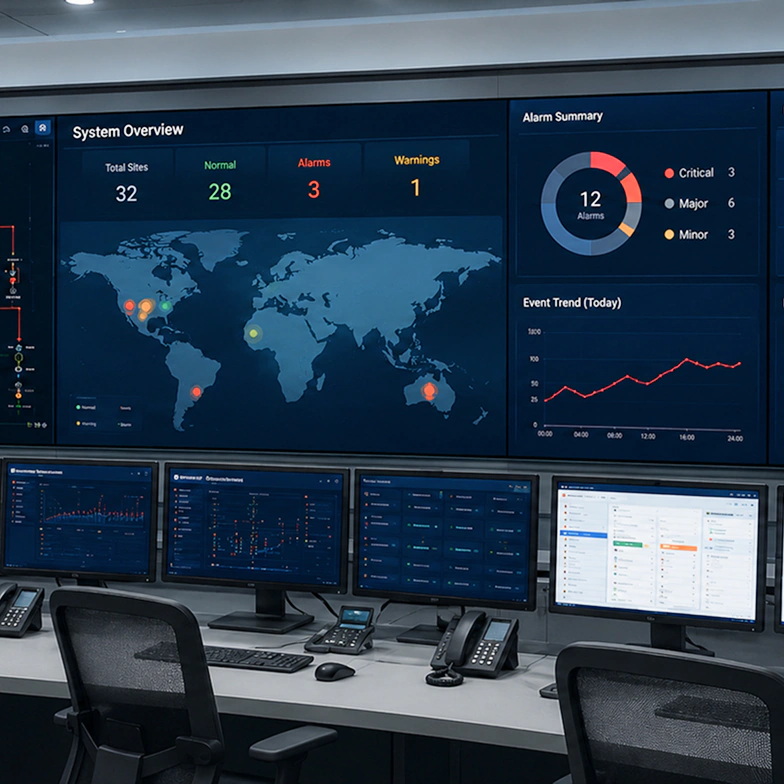

Centralized Monitoring System
(CMS)
An integrated monitoring and management platform that connects with up to 200 CMD systems, enabling centralised supervision of substation assets across domestic and international sites.

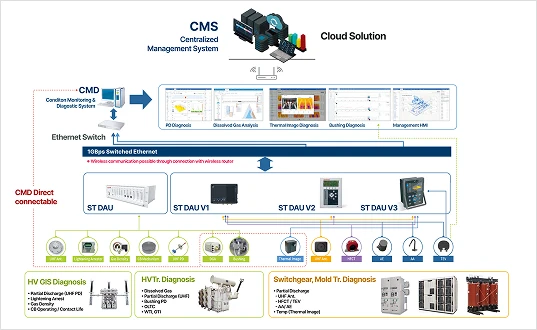

System Architecture
The diagnosis system architecture covers the entire process from data acquisition to centralized monitoring and remote operation.

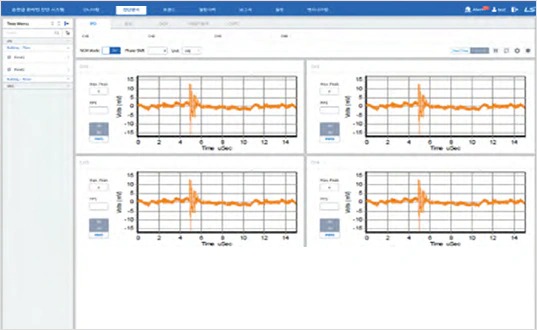

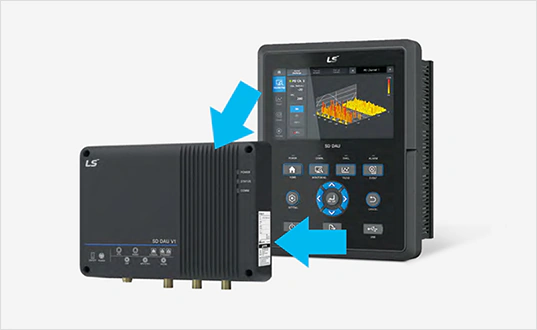

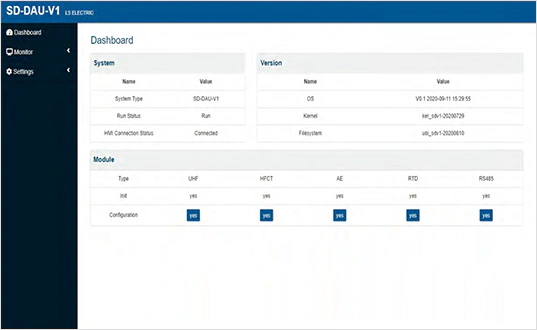

Data Acquisition Unit (DAU)
Collects diagnostic data from power equipment through a compact and flexible hardware platform that supports easy installation and maintenance.

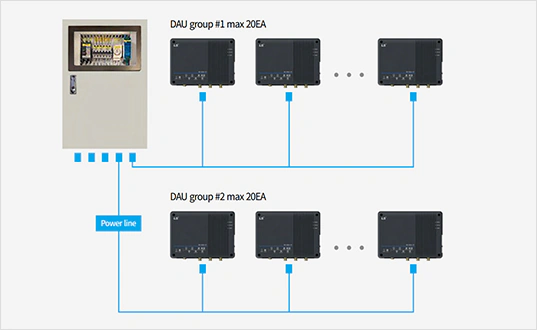

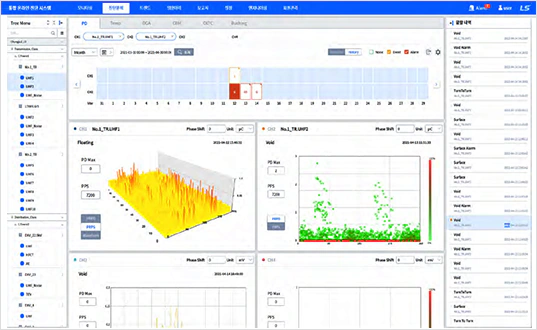

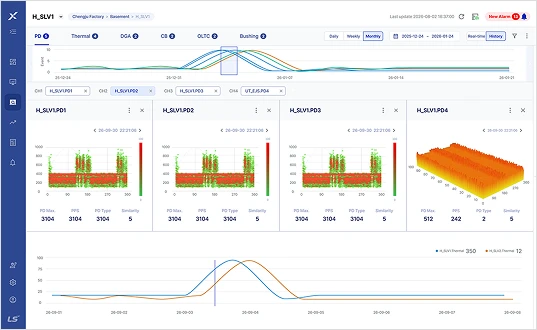

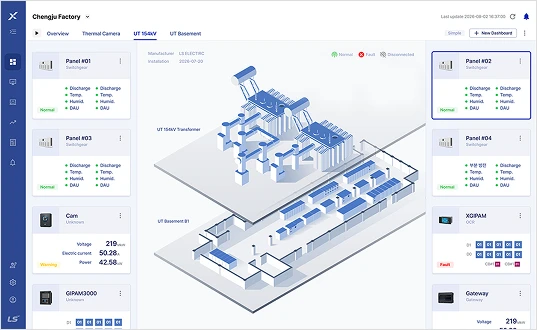

Condition Monitoring and Diagnostic System (CMD)
Provides AI-based condition monitoring, diagnostics, trend analysis, alarm management, and reporting at the local site level.

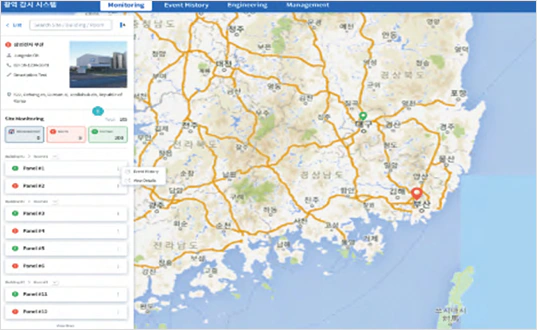

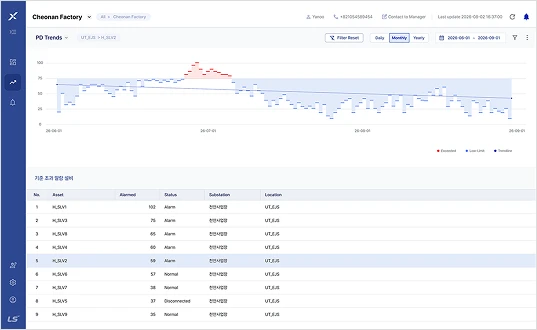

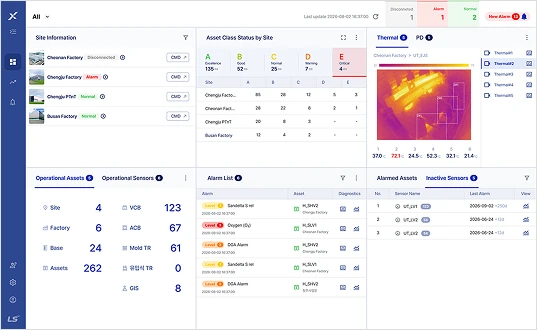

Centralized Management System (CMS)
Enables centralized monitoring and management of up to 200 substations through integrated diagnostics and reporting.

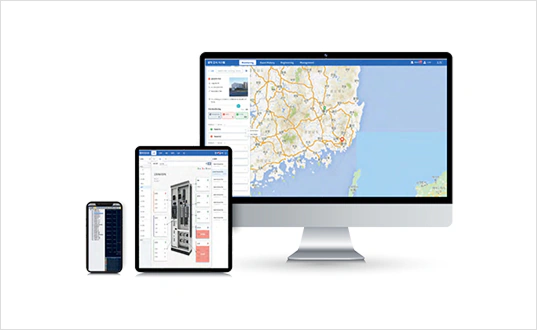

Mobile HMI
Provides 24/7 real-time access to equipment status, alarms,
and diagnostic information through a web-based mobile interface.
Downloads
Smart & Wide Area Combined Diagnosis System
- Beyond_X_송배전_통합_광역감시_진단시스템_EN_C87542-02-202409.pdf (7.72MB)
