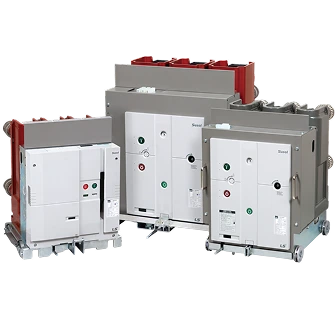

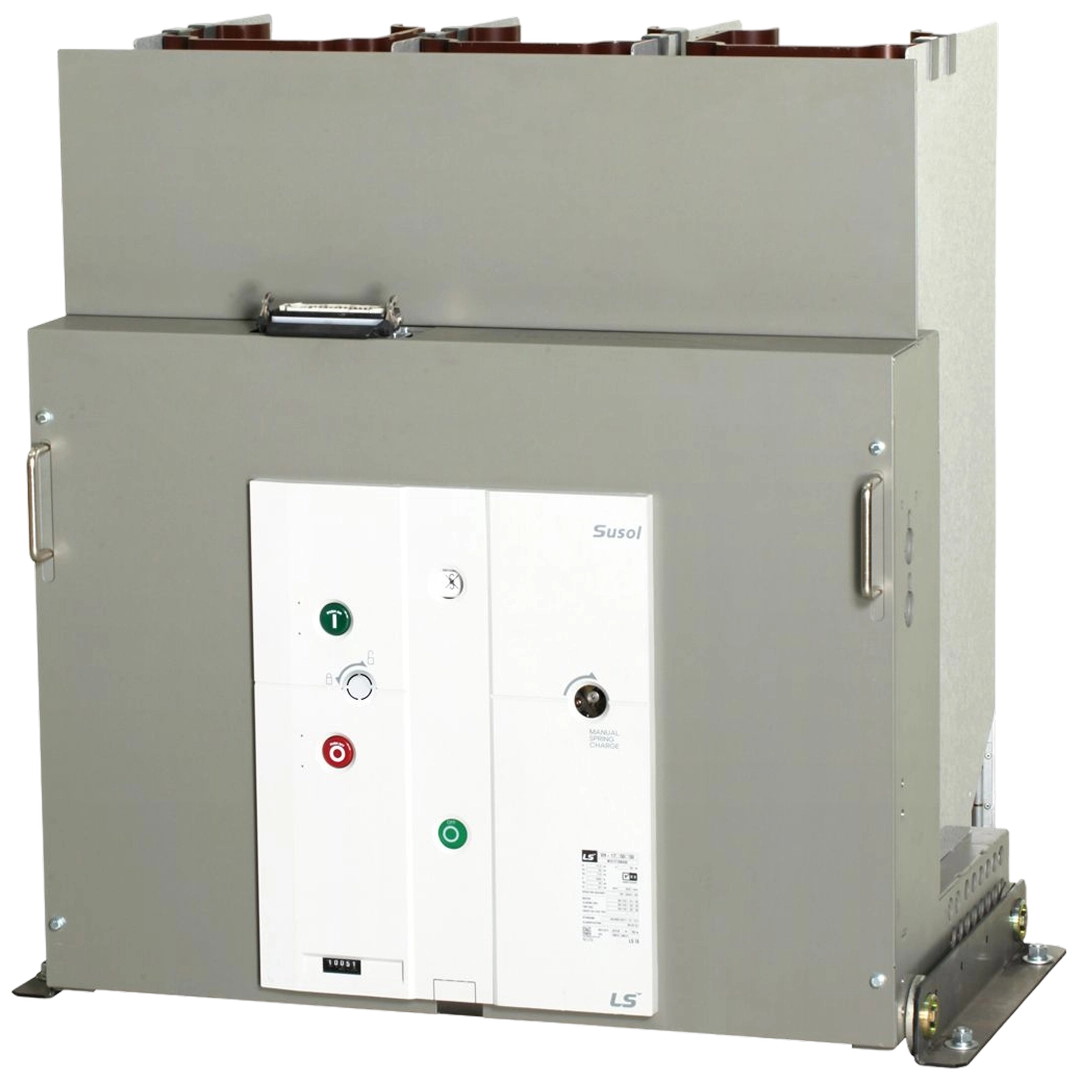

The Susol Vacuum Circuit Breaker (VCB) for Generator Applications is designed with high dielectric strength, superior interrupting performance, and a durable operating mechanism for reliable generator protection. Rated at 17.5 kV, with current ratings up to 5000 A (fixed) and 4000 A (withdrawable), it provides interrupting capabilities of 50 kA for system-source faults and 25 kA for generator-source faults. Compliant with IEC/IEEE 62271-37-013:2015 and backed by KEMA short-circuit certification, it delivers reliable protection between generators and transformers.
01
The breaker provides interrupting capabilities of 50 kA for system-source faults and 25 kA for generator-source faults. It complies with IEC/IEEE 62271-37-013:2015 and holds KEMA short-circuit certification for generator protection applications.
02
Fixed and withdrawable configurations accommodate different installation requirements. Various AC/DC control voltages and accessories, including position switches, support flexible system configuration.
03
An optimized natural-cooling airflow structure reduces concerns about overheating caused by cooling fan failure. An operating mechanism rated for 10000 no-load mechanical operations provides durability for repeated operation.
04
Insulation performance includes a power-frequency withstand voltage of 50 kV and a lightning impulse withstand voltage of 110 kV. Options such as an under-voltage trip device (UVT), keylocks, and plug interlocks support safe operation.
P Type | H Type | |
|---|---|---|
Model | VH-17P50D50 | VH-17H50D40 |
Rated Voltage | 17.5 kV | 17.5 kV |
Rated Current | 5000 A | 4000 A |
System-Source Fault Interrupting Current | 50 kA | 50 kA |
Generator-Source Fault Interrupting Current | 25 kA | 25 kA |
Installation Type | Fixed | Draw-out |
