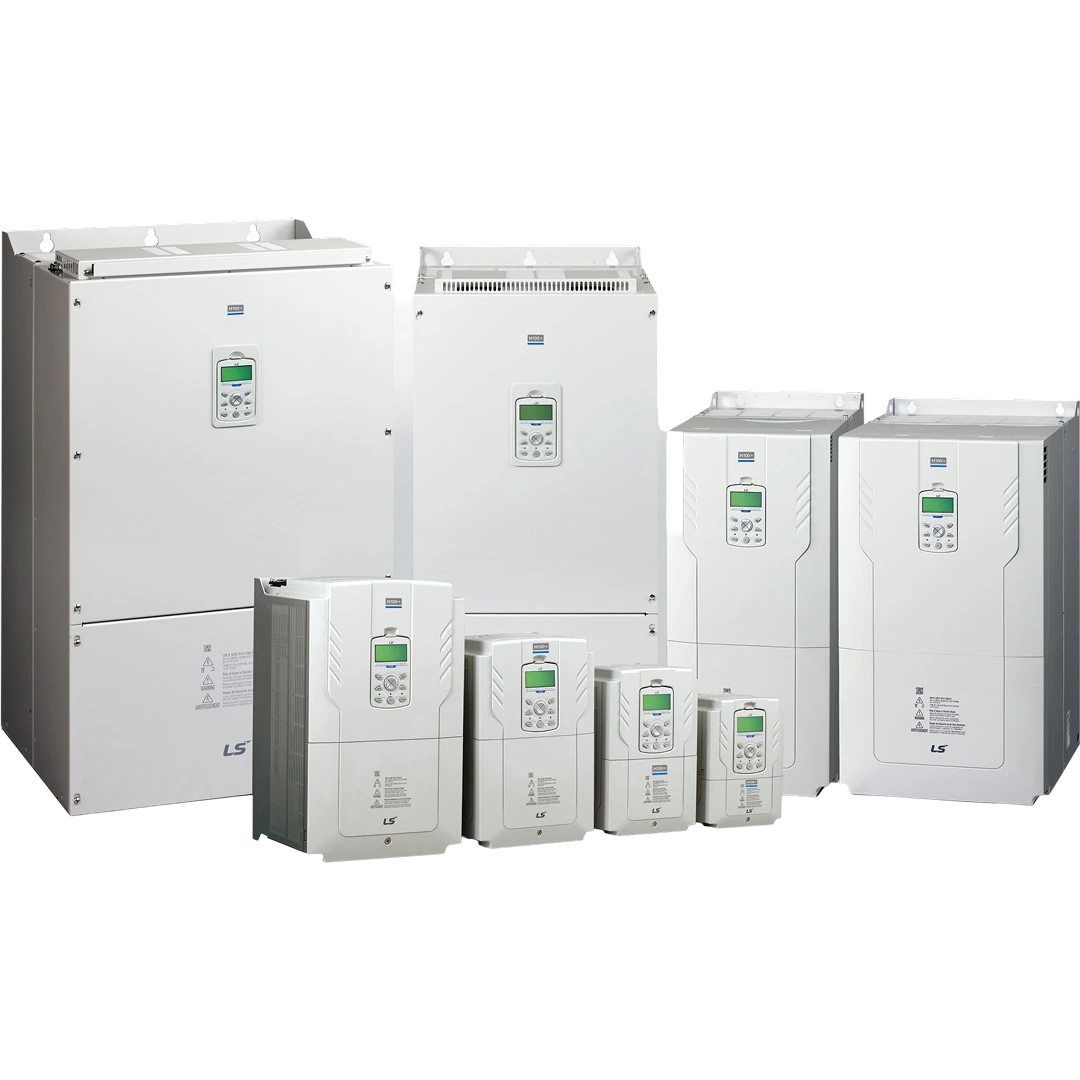

H100 Plus

The H100+ is a powerful drive that combines advanced control technologies with dedicated protection functions to deliver reliable and energy-efficient performance. With intuitive operation and support for various automation communication protocols, the H100+ provides smart and flexible control for a wide range of HVAC, fan, and pump applications.

Motor Rating: 1 – 1000 HP
Supply Voltage: 3 x 200-240V AC 3 x 380-480V AC 3 x 525-600V AC
Standard: UL, cUL, CE, RoHS, Marine, OSHPD

Key Features

Fan and Pump Protection and Optimization

Built-in functions, such as No-Flow detection, protect and optimize fan and pump equipment.

Energy-Saving Controls

Advanced PID control and sleep mode improve energy efficiency in HVAC applications.

Dedicated Hand-Off-Auto (HOA) Keypad

Equipped with a Hand-Off-Auto (HOA) keypad for intuitive operation.

Building Automation Connectivity

Supports building and HVAC automation protocols, including BACnet, N2, and Modbus.

Connect with Our Product Expert

Reach out to our dedicated specialist for technical inquiries and product support.

sales.us@lselectricamerica.com

Send an Inquiry

Lineup

Ratings

Supply Voltages	3 x 200-240VAC	3 x 380-480VAC	3 x 525-600VAC
Power Range	1-125HP	1-1000HP	7.5-400HP
Power Range	0.75-90kW	0.75-750kW	5.5-300kW

Communications & Options

Communications	Standard	Modbus RTU, RS-485, BACnet/MSTP, MetaSys N2
	Optional	BACnet/IP (EtherNet/IP, Modbus TCP/IP, BACnet/IP)
		RAPIEnet+ (EtherNet/IP, Modbus TCP/IP, RAPIEnet)
		Lonworks
Options	Mounting Kit	Flange, Conduit, Disconnect Switch, NEMA 4X Loader Mount
Options	Others	Extension I/O, Remote Cable (2/3m), USB-RJ45 Cable

Downloads

CatalogsMay 31, 2025

LV Drive Series Catalog

LV Drive Series_NA_Ver2_202401.pdf (5.62KB)

CatalogsOct 26, 2024

H100Plus leaflet

H100 plus leaflet_letterSize_EN_202309.pdf (2.18KB)

CatalogsAug 14, 2024

H100+ Catalog

H100 Plus_letter_202403_V5.pdf (12.55KB)

CatalogsApr 24, 2023

H100 Catalog

H100_Catalog_EN_202211.pdf (10.11KB)

ManualsJun 04, 2025

H100 PLUS Manual

H100+ Programming Manual_v7_250530.pdf (14.37KB)

Tech Hub Video Guide

Variable Frequency Drive Video Tutorials

Need help with installation, configuration, troubleshooting, or maintenance?

Watch step-by-step video guides for the Variable Frequency Drive series in our Tech Hub.

Explore Tech Hub
