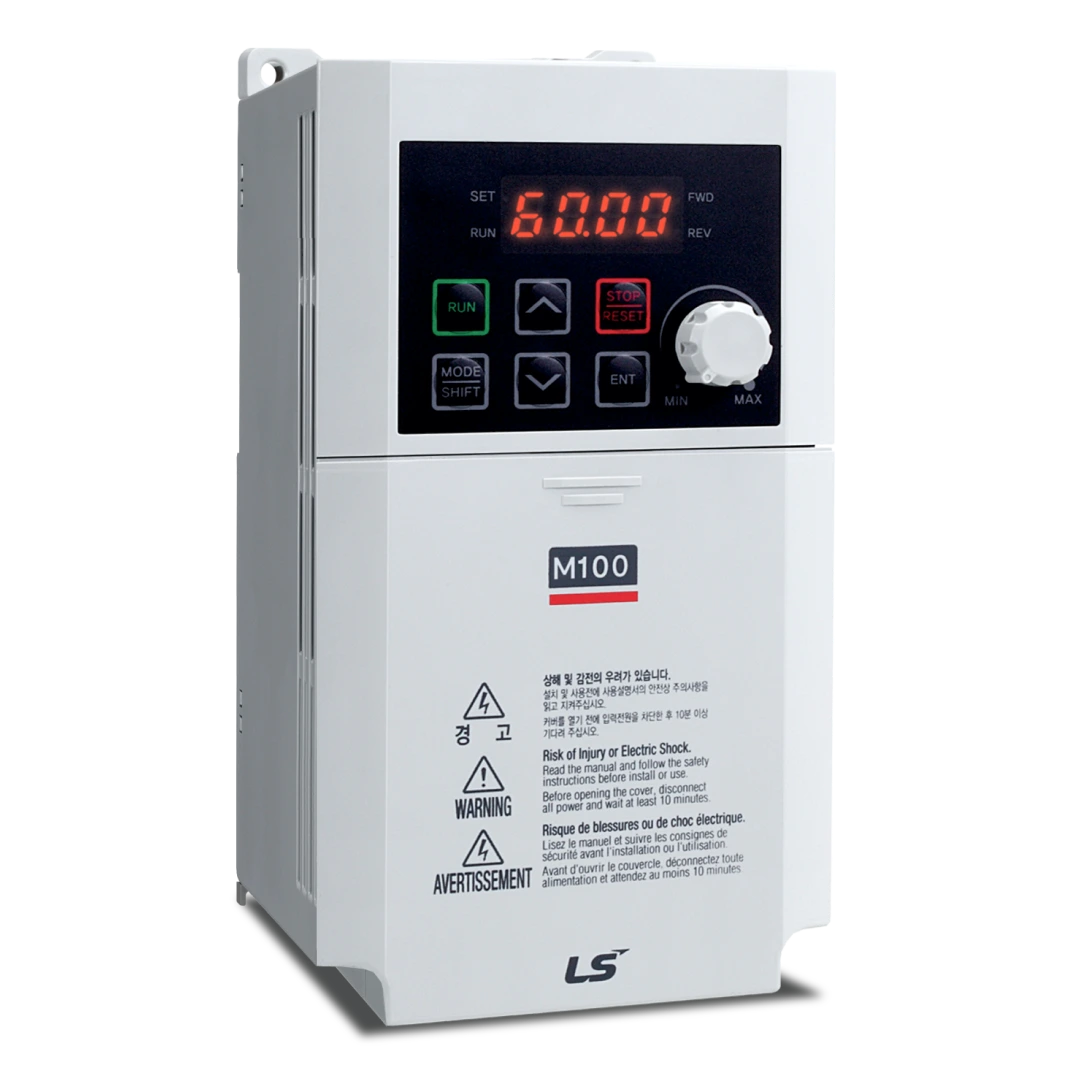

M100

The M100 is a compact micro drive designed for small motor control applications. This unit's ultra-compact design supports close installation in limited spaces, while an intuitive dial interface simplifies operation. With essential functions for small motor control, the M100 provides an economical and easy-to-use solution for simple installation and operation.

Motor Rating: 1/8 – 3 HP
Supply Voltage: 1 x 100-120V AC 1 x 200-240V AC
Standard: UL, cUL, CE, RoHS

Key Features

Easy DIN-Rail Installation

Supports standard DIN-rail mounting for simple installation.

Compact Side-by-Side Design

Compact design supports side-by-side close mounting to save panel space.

Intuitive Frequency Control

Built-in front dial enables quick and intuitive frequency adjustment.

Accessible RJ45 Port for Communication

A built-in RJ45 port makes it easy to connect communication devices and peripherals.

Connect with Our Product Expert

Reach out to our dedicated specialist for technical inquiries and product support.

sales.us@lselectricamerica.com

Send an Inquiry

Lineup

Ratings

Supply Voltages	1 x 100-120VAC	1 x 200-240VAC
Power Range	1/4-1HP	1/8-3HP
Power Range	0.2-0.75kW	0.1-2.2kW

Communications & Options

Communications	Standard	Modbus RTU, RS-485
Options		Remote Cable (1/2/3/5m), Remote Keypad

Downloads

CatalogsMay 31, 2025

LV Drive Series Catalog

LV Drive Series_NA_Ver2_202401.pdf (5.62KB)

CatalogsFeb 12, 2025

M100 Catalog

M100_leaflet_EN_202502.pdf (470B)

ManualsAug 19, 2025

M100 Simple User Manual

M100_User Manual_EN_Simple_V2.0_220718.pdf (6.36KB)

ManualsAug 01, 2025

M100 User Manual

M100_User Manual_EN_V2.2_250731.pdf (9.86KB)

ManualsFeb 10, 2025

DriveView9 User Manual

DriveView9_Manual_Eng_Rev.2.0.pdf (5.13KB)

Tech Hub Video Guide

Variable Frequency Drive Video Tutorials

Need help with installation, configuration, troubleshooting, or maintenance?

Watch step-by-step video guides for the Variable Frequency Drive series in our Tech Hub.

Explore Tech Hub

Other Products

H100 Plus

SP100

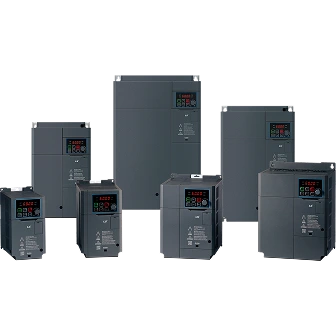

G100
