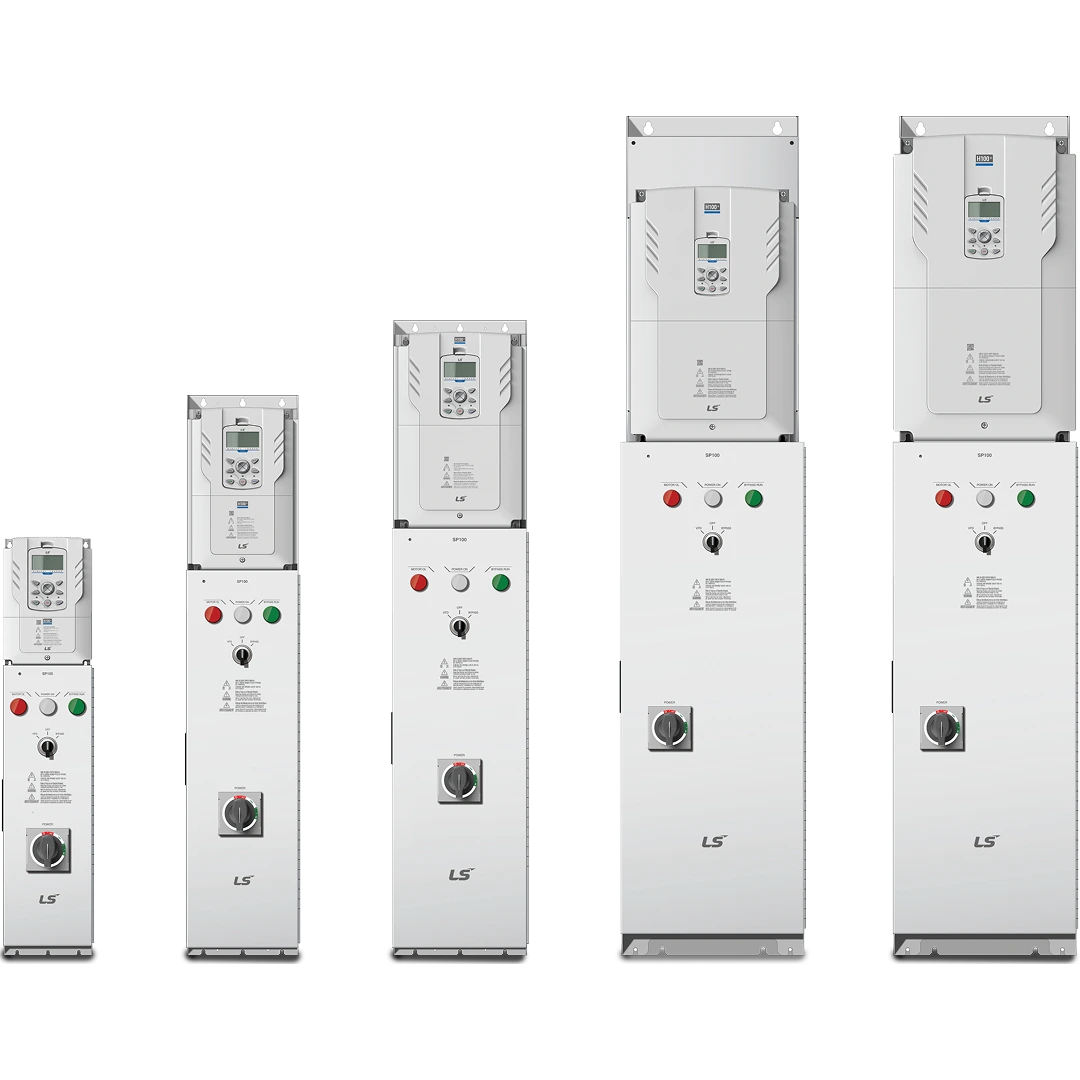

SP100

The SP100 is a VFD package solution designed to support reliable HVAC system operation. With smooth transfer between line power and inverter control, along with automatic transfer in the event of a fault, the SP100 helps minimize equipment downtime. It provides a practical energy-saving solution for HVAC applications requiring stable and continuous operation.

Motor Rating: 7.5 – 75 HP
Supply Voltage: 3 x 200-240V AC 3 x 380-480V AC
Standard: UL, OSHPD

Key Features

H100+ Drive Platform

Delivers power management and energy efficiency for fans, pumps, and HVAC systems.

Multiple Bypass Transfer Modes

Supports multiple bypass transfer modes, including terminal, keypad, and trip-based transfer.

Smooth Transfer Control

Provides smooth transfer between line power and drive control.

Automatic Fault Transfer

Supports automatic transfer in the event of a fault, with user-configurable trip conditions.

Connect with Our Product Expert

Reach out to our dedicated specialist for technical inquiries and product support.

sales.us@lselectricamerica.com

Send an Inquiry

Lineup

Ratings

Supply Voltages	3 x 200-240VAC	3 x 380-480VAC
Power Range	7.5-40HP	7.5-75HP
Power Range	5.5-30kW	5.5-55kW

Communications & Options

Communications	Standard	Modbus RTU, RS-485, BACnet/MSTP, MetaSys N2
	Optional	BACnet/IP (EtherNet/IP, Modbus TCP/IP, BACnet/IP)
		RAPIEnet+ (EtherNet/IP, Modbus TCP/IP, RAPIEnet)
		Lonworks
Options	Others	Extension I/O, Remote Cable (2/3m), USB-RJ45 Cable
