01
Compact Design
With one of the smallest footprints in its class, the XGB Series helps reduce control panel space requirements and supports flexible installation across a wide range of equipment.
XGB

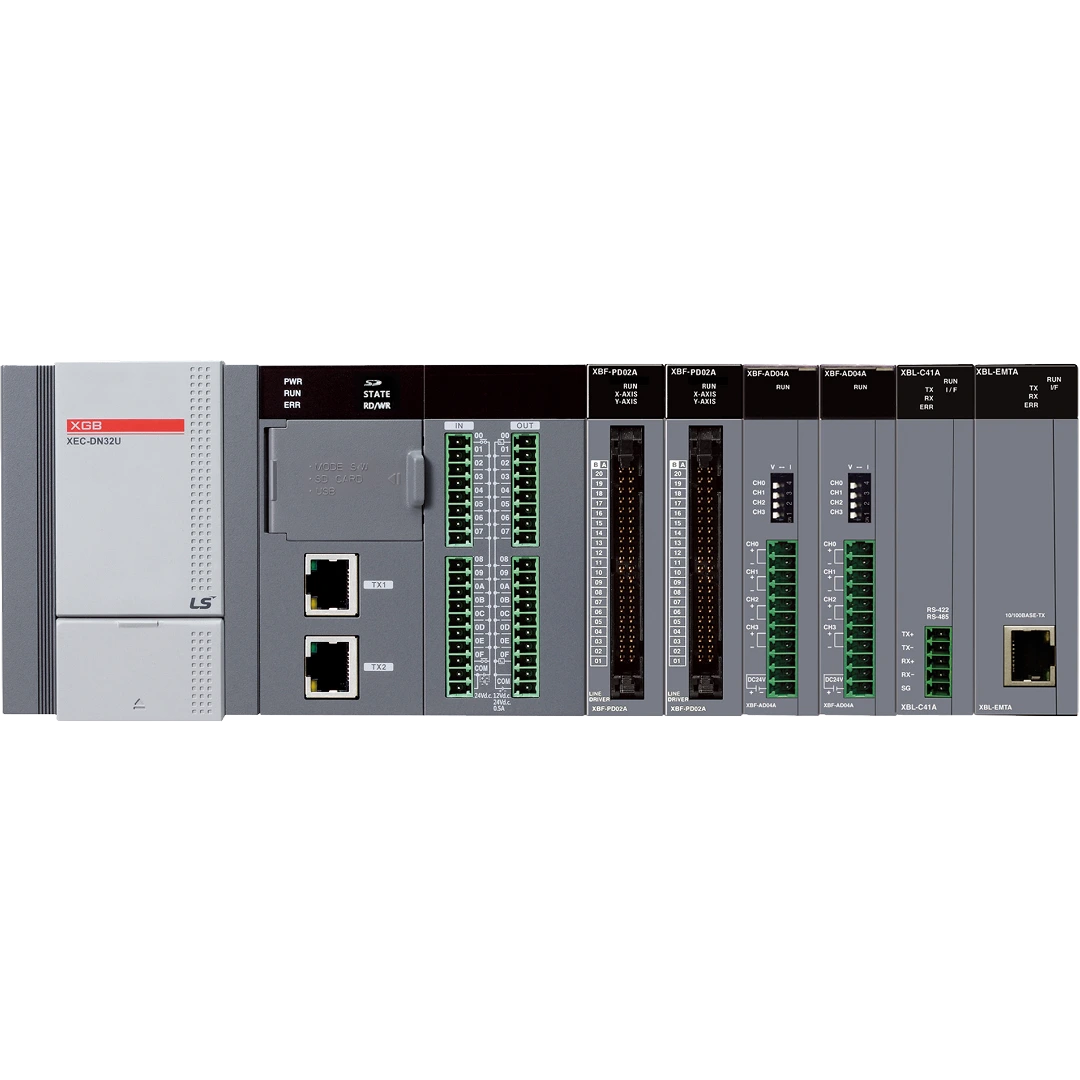

The XGB Series is a compact PLC platform designed with a wide range of control and communication functions. Its space-efficient design and flexible capabilities help support equipment design flexibility and simplify system operation. Optimized for user-oriented integrated control, the XGB Series can be efficiently applied across various automation systems.
- Compact Size
- From 41.5 to 150 mm module width / 20 × 63 × 90 mm expansion modules
- Flexible system configuration
- Up to 10 expansion units / Max. 31 unit configuration
- High-performance control capability
- 40 ns processing speed, 384 KB program capacity, and up to 256 I/O points
Key Features
02
Enhanced Built-in Communication
Depending on the model, built-in dual-port Ethernet, RS-232C, and RS-485 support connectivity with HMIs, PLCs, and upper-level systems, simplifying integrated control.
03
Built-in Control Functions
Depending on the model, the XGB Series supports high-speed counter, analog I/O, PID control, pulse catch, external interrupt, and positioning functions, expanding the range of equipment control applications.
04
Flexible System Expansion
The system can be expanded with a wide range of modules, including expansion I/O, analog, temperature, load cell, positioning, EtherCAT, and various industrial network modules.
Lineup
| Model | Performance | Max. I/O Points | Built-in Ethernet | Positioning |
|---|---|---|---|---|
| XEM H Type | 40 ns/step processing speed 384 KB program capacity |
256 points (7 expansion modules) | 1-port | 2 or 6 axis |
| XEC U Type | 60 ns/step processing speed 384 KB program capacity |
352 points (10 expansion modules) | Dual-port | 4 axis |
Downloads
Catalog for XGB Series
- XGB Series_Catalog_EN_202205.pdf (16.89KB)
Catalog for XBM HP, XBM H2
- Catalog for XBM HP_ XBM H2.pdf (1.54KB)
XGB Positioning (XBF-PN04B, XBF-PN08B) User Manual
2.4
- XBF_PN04B_PN08B_ Manual_V2.4_202604.pdf (16.86KB)
XGB Positioning (XBF-PD02A) User Manual
2.0
- XBF-PD02A_Manual_V2.0_202503_EN.pdf (5.71KB)
XBM-H2/HP Type User Manual
2.8
- XBM-H2(HP)_T4_Manual_V2.8_202503_EN.pdf (35.58KB)
